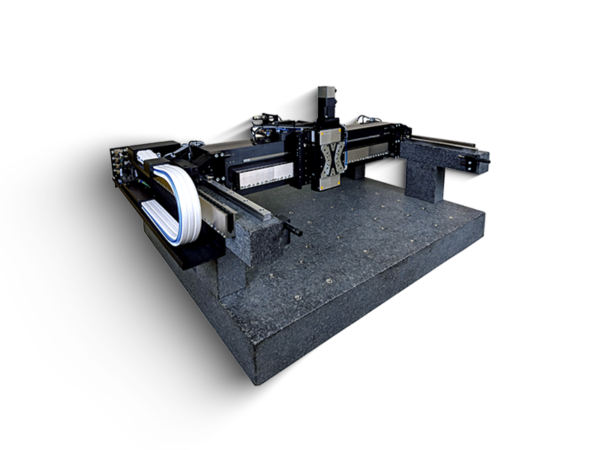

Why Granite is the Ultimate Choice for Engraving Machines
In high-speed engraving operations—whether for intricate jewelry molds, industrial signage, or aerospace components—dimensional stability and vibration resistance are non-negotiable. Granite’s unique properties make it the superior material for engraving machine bases, gantries, and worktables compared to aluminum or steel:
1. Unmatched Vibration Damping
- 90% Vibration Absorption: Granite’s dense structure eliminates chatter marks caused by spindle vibrations, ensuring crisp details even at 30,000 RPM.
- Nanometer-Level Accuracy: Achieve <5μm repeatability for micro-engraving tasks like circuit board marking or medical device serialization.
2. Thermal Stability for 24/7 Operations
- Ultra-Low CTE (4.5×10⁻⁶/°C): Maintains ±2μm/m flatness across 10°C–40°C workshop environments.
- Zero Thermal Warping: Critical for multi-material engraving (e.g., switching between carbon fiber and brass without recalibration).
3. Industrial-Grade Durability
- Corrosion Resistance: Withstands coolants, oils, and humidity—ideal for wet engraving or dusty workshops.
- Wear-Free Surface: No degradation over decades, reducing maintenance costs by 60% vs. polymer composites.
4. Customizable Precision
- OEM-Ready Designs: Pre-machined T-slots, M6/M8 threaded holes, and vacuum table grids to match Roland, Gravotech, or Trotec systems.
- ESD-Safe Options: Prevent static damage during non-metallic material engraving (e.g., PCB, acrylic).
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Class-00 Black Granite (ISO 1302) |
| Flatness | ±2μm/m (DIN 876 Standard) |
| Surface Hardness | 6-7 Mohs (Diamond-Cutter Tested) |
| Max Load Capacity | 1,000 kg/m² |
| Standard Sizes | 600x600mm to 2500x4000mm |
| Certifications | ISO 9001, CE, RoHS |
Key Applications
- 3D Relief Engraving: Granite bases enable flawless depth control for wood, stone, and composite materials.
- High-Speed Laser Engraving: Stable platforms for CO2/fiber lasers marking metals, ceramics, and plastics.
- Industrial Signage: Achieve burr-free edges on stainless steel serial plates or aluminum nameplates.
- Jewelry Micro-Engraving: Sub-10μm precision for wedding ring inscriptions and luxury watch components.
Why Choose Our Granite Components?
- Proven in Production: Trusted by Foxconn and Ricoh for 24/7 engraving lines.
- NIST-Traceable Calibration: Optional for ISO 17025-compliant facilities.
- Rapid Customization: Submit your CAD file → Receive prototype in 7 days.
- Global Logistics: Pre-shipment vibration testing with certification reports.
FAQ
Q: Can granite bases integrate with rotary engraving attachments?
A: Yes – we pre-machine mounting interfaces for 4th-axis rotary units (e.g., HSD ES919).
Q: How does granite handle coolant exposure in wet engraving?
A: Our hydrophobic surface treatment prevents liquid absorption (tested per IP65 standards).
Q: Is granite suitable for UV laser engraving systems?
A: Absolutely. Optional ESD-safe coatings protect sensitive electronics from static discharge.
